| Parameter | Specification |
|---|---|
| Distance | 10, 30, 60 and 100 meters are available for selection |
| Frequency conversion channel | 4-band frequency conversion |
| Detection mode | Alarm when two adjacent light beams are blocked |
| Adjustable range of the optical axis | 180 degrees horizontally (90 degrees left and right) |
| Material | pc engineering plastic + aluminum alloy shell |
| Waterproof rating | IP65 |
| Operating voltage | DC12-18V |
| Operating current | Transmitter ≤35MA, receiver ≤45MA |
| Alarm trigger time | 80MS |
| White light resistance level | 6500LUX |
| Buzzer indication | Yes |
| Number of beams | 4 beams | 6 beams | 8 beams | 10 beams |
|---|---|---|---|---|
| Height | 75cm | 110cm | 138cm | 173cm |
| Detection distance | 10m 30m 60m 100m | 10m 30m 60m 100m | 10m 30m 60m 100m | 10m 30m 60m 100m |
| Specification and model | AKT-4-10 AKT-4-30 AKT-4-60 AKT-4-100 | AKT-6-10 AKT-6-30 AKT-6-60 AKT-6-100 | AKT-8-10 AKT-8-30 AKT-8-60 AKT-8-100 | AKT-10-10 AKT-10-30 AKT-10-60 AKT-10-100 |

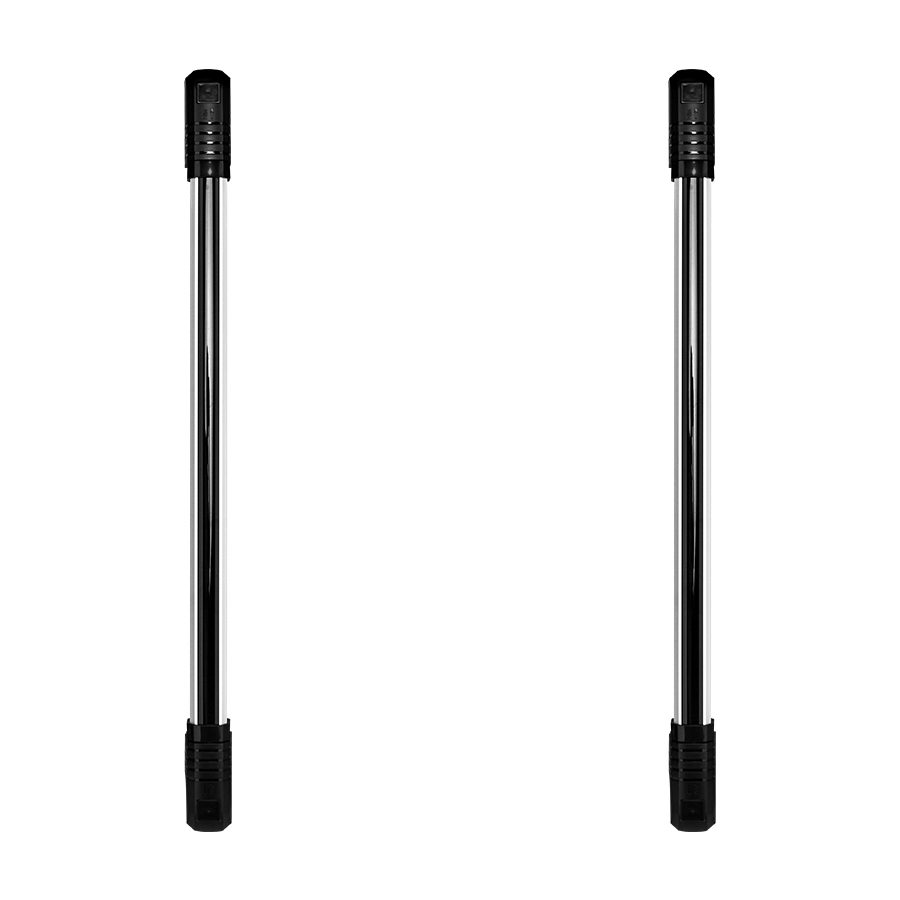

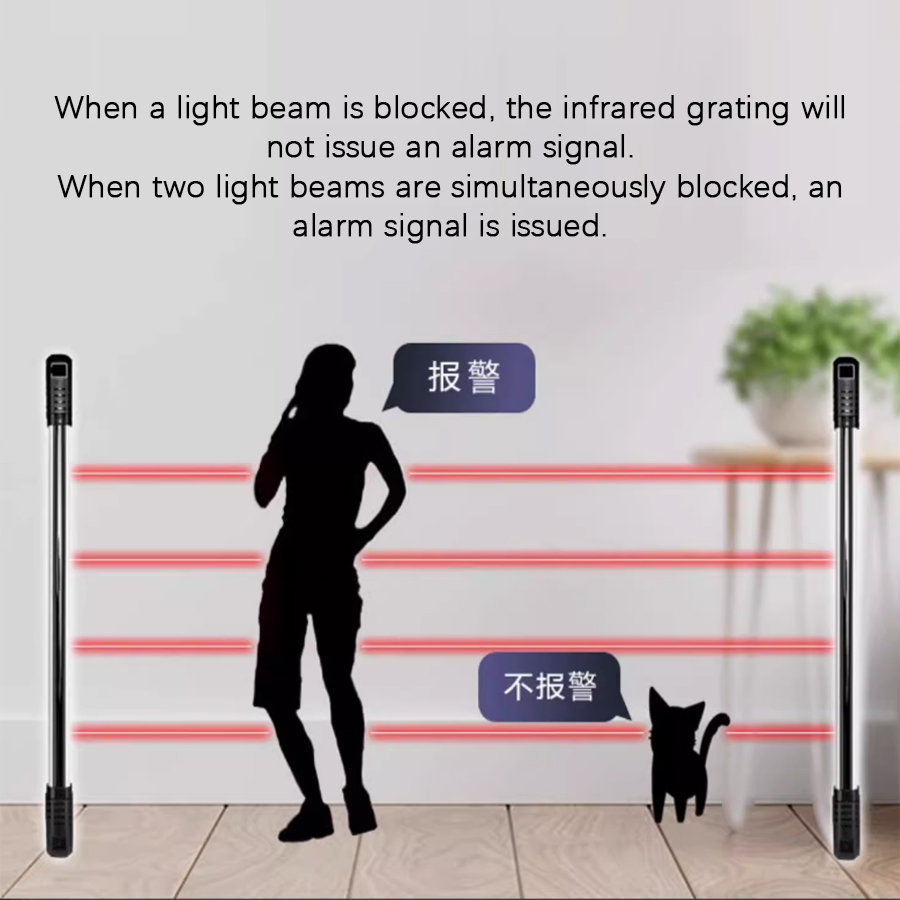

The AKT outdoor waterproof infrared beam grating detector perimeter railing works like an "invisible protective net." It emits multiple infrared beams to create an unseen barrier, installed at places like doors, windows, or balconies. When someone illegally intrudes and crosses this barrier, if they block two or more beams at the same time, the system immediately recognizes it as an anomaly and triggers an alarm. On the other hand, if only one beam is blocked (e.g., by a small animal or a leaf drifting by), no alarm will sound, as it requires at least two beams to be obstructed to activate. This design effectively detects intruders while reducing false alarms.
The AKT outdoor waterproof infrared beam grating detector perimeter railing is a smart anti-theft device, ideal for installation on doors, windows, and balconies. It creates an "invisible protective net" using multiple infrared beams, triggering an immediate alarm when someone illegally intrudes and blocks two or more beams simultaneously, ensuring your safety. Designed to require at least two beams to be obstructed to activate the alarm, it effectively reduces false alerts, and it is suitable for outdoor use with waterproof and durable features.

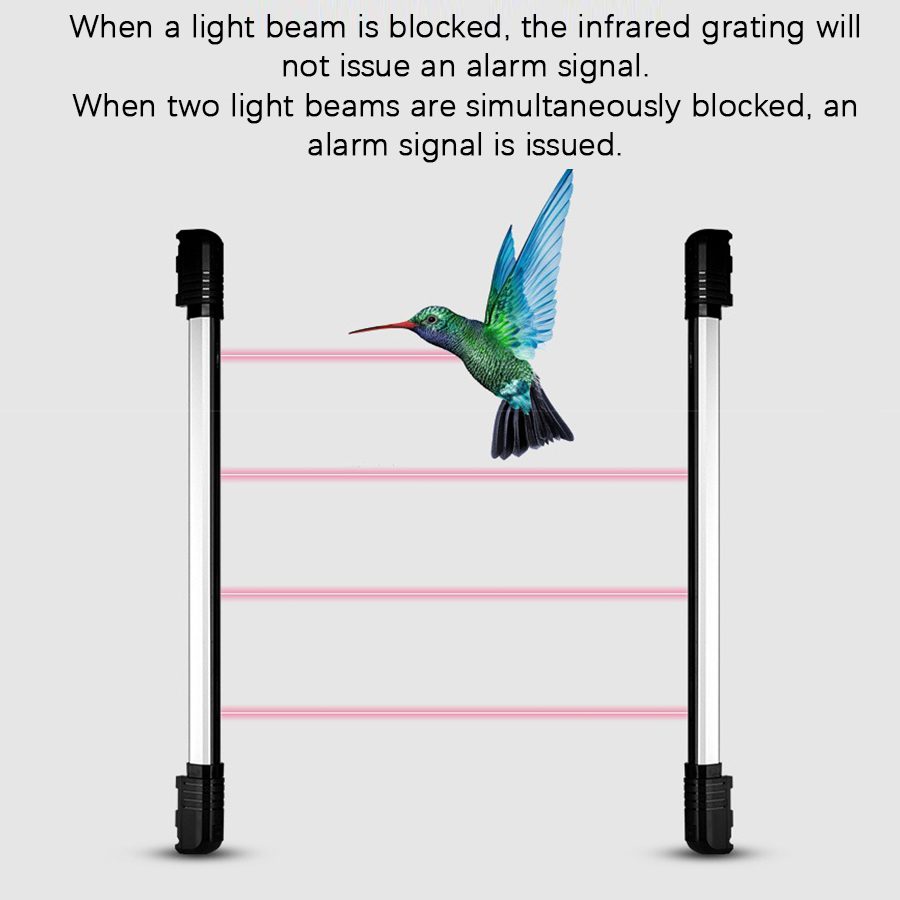

The AKT grating only triggers an alarm when two or more adjacent infrared beams are blocked at the same time. A single beam interrupted by a falling leaf, small bird or animal will not sound the alarm. This dual-beam logic is what lets the detector run reliably outdoors on fences, balconies and windows while keeping nuisance alarms low.

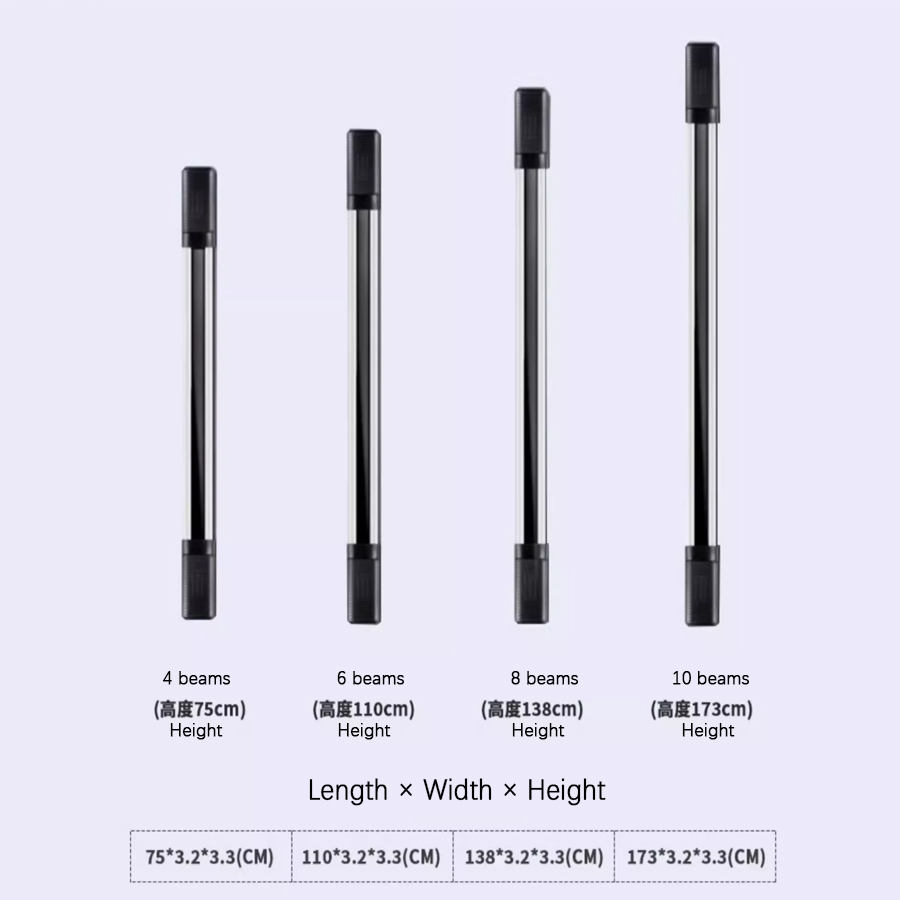

Beam count sets the protected height: 4 beams cover 75 cm, 6 beams 110 cm, 8 beams 138 cm and 10 beams 173 cm. Range options are 10, 30, 60 and 100 metres. Pick the beam count to match the wall or railing height and the range to span the gap between transmitter and receiver, for example an AKT-8-60 for a 138 cm fence over a 60 m run.
Yes. It carries an IP65 rating, so the PC engineering plastic and aluminium-alloy housing is dust-tight and protected against water jets, suitable for outdoor perimeter security in rain and wind. It also tolerates strong ambient light up to 6500 LUX, so direct sunlight on the receiver does not cause false alarms or missed detections.

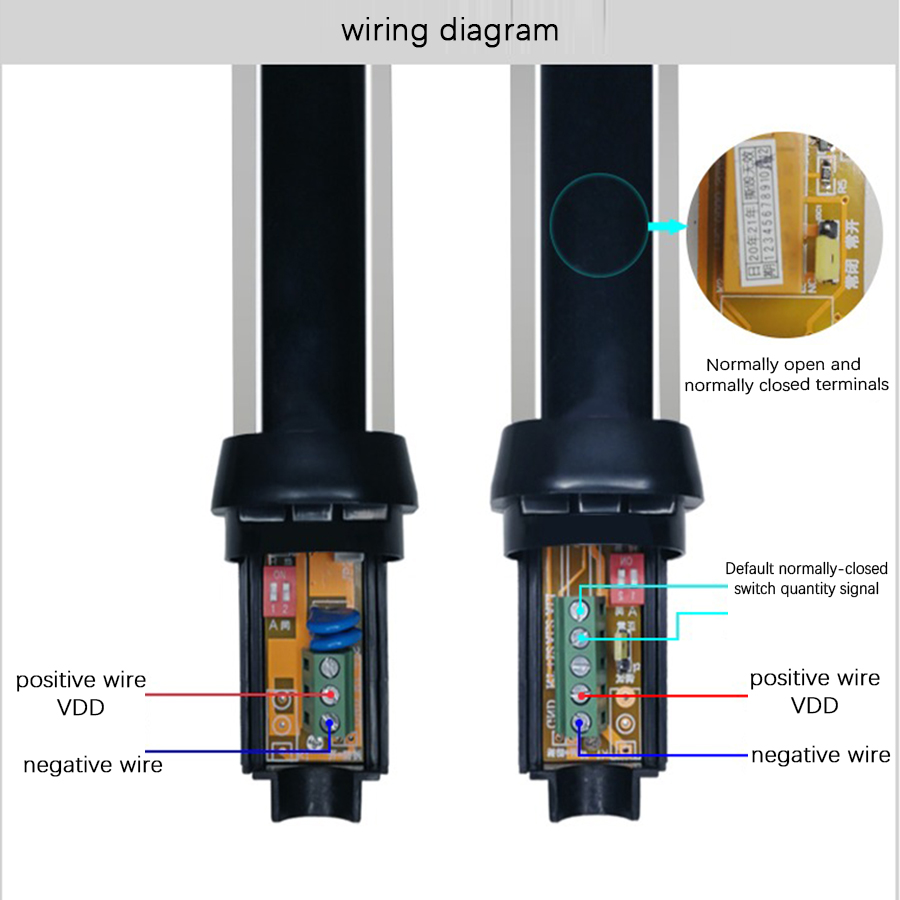

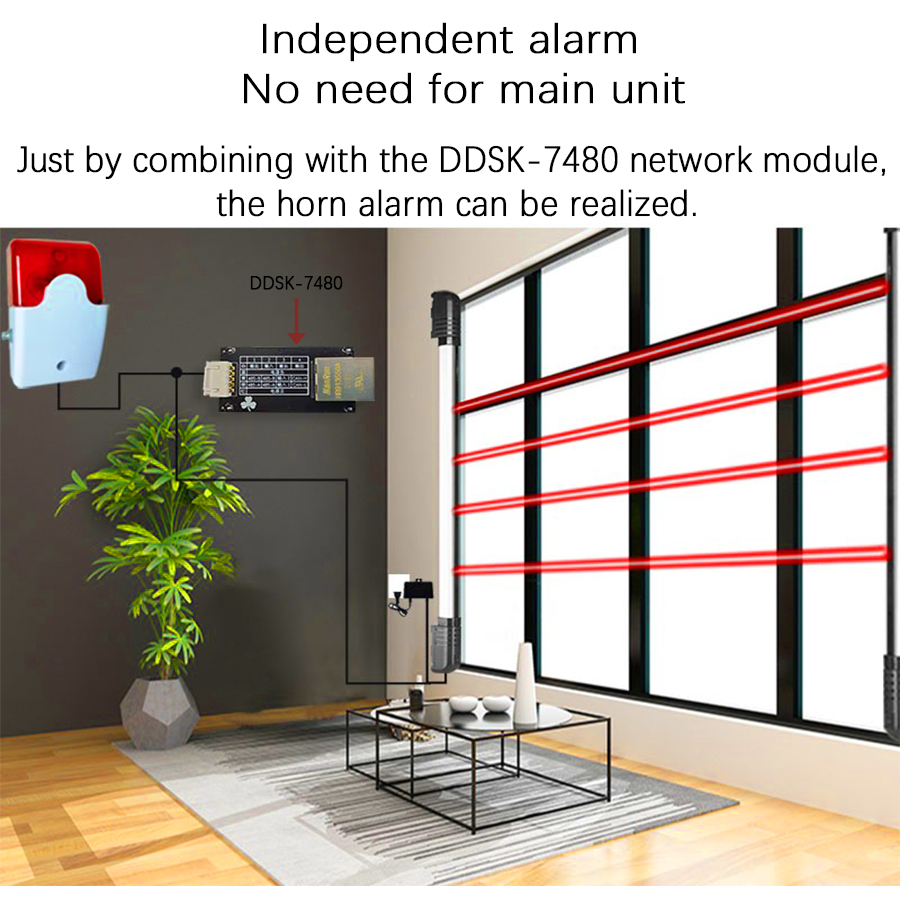

The transmitter and receiver run on DC 12-18 V. Current draw is low at ≤35 mA for the transmitter and ≤45 mA for the receiver, so a small regulated supply or alarm-panel auxiliary output is enough. The receiver provides a buzzer indication and an alarm signal that wires into a standard anti-theft alarm panel or perimeter controller.

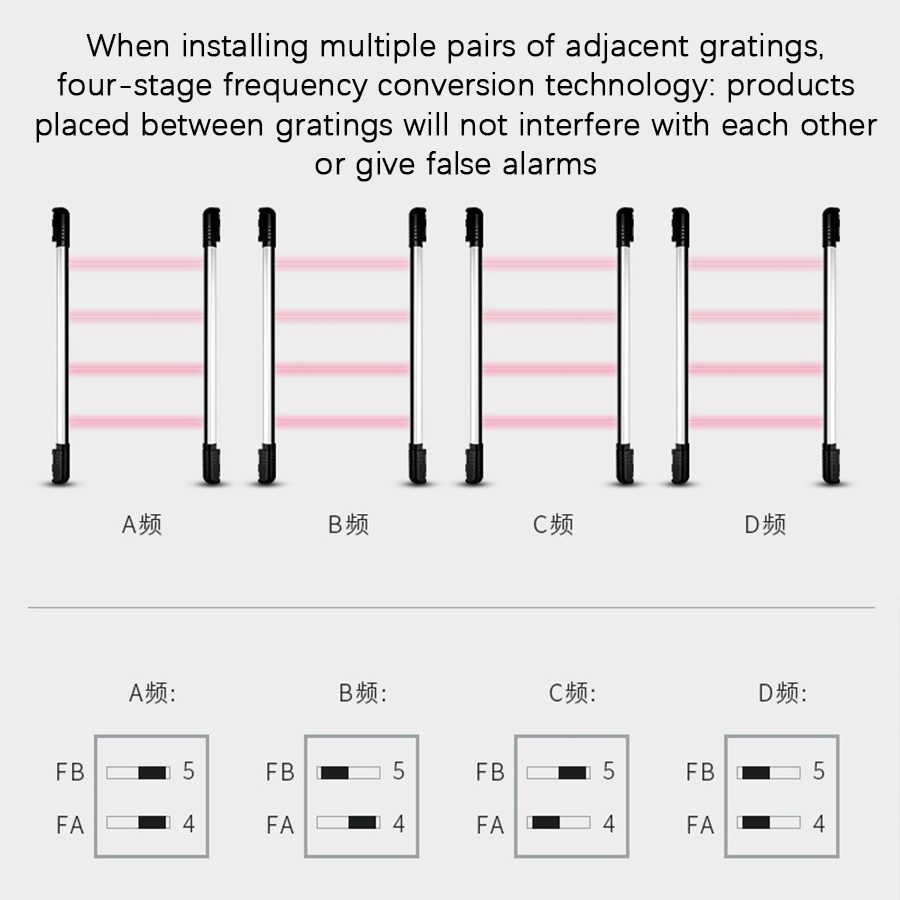

The optical axis adjusts 180 degrees horizontally (90 degrees left and right), making it easy to aim the transmitter and receiver across uneven railings or angled balconies. Four-band frequency conversion lets neighbouring units run without interfering with each other. Once two beams are blocked the alarm triggers in about 80 ms, giving a near-instant response to an intruder.
Specs reviewed by Engineer Cai, Senior Application Engineer. See certificates.
