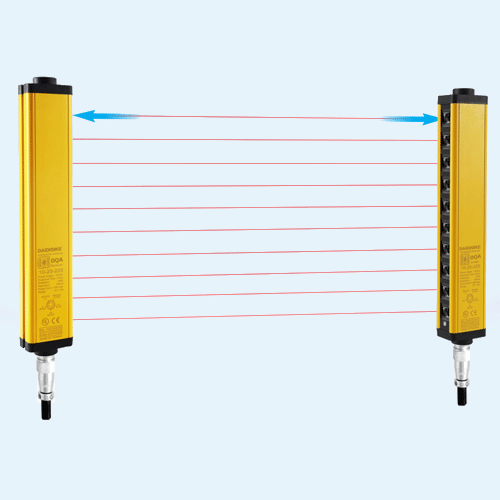

Heavy-duty photoelectric safety light curtain for presses, assembly and perimeter guarding. Rectangular 35×51 mm body with resolutions 10/20/40/80 mm; standard sensing range 0.3–3 m (options 0.3–6 m / 0.3–30 m); strong light immunity ≥10,000 Lux (incidence ≥ 5°); typical response time ≤10 ms; enclosure rating IP65. Safe outputs via external/inner single/dual controllers (W/N/S/P).
Body 35×51 mm, IP65; stainless anti-water aviation plug (M12) for quick wiring.
Applies to IEC 61496-1/-2; integrate with a safety relay/PLC to reach high safety categories.
Data normalized from the provided DQS/DQV manuals. If discrepancies exist, the official datasheet and delivered certificates prevail.
Resolution & Application Guide
Resolution (K)
Typical Application
10 mm
Finger protection at close-in assembly and tool access
20 mm
Palm/hand protection at packaging and access openings
40 / 80 mm
Hand-arm / body presence & perimeter zones
Protective height H = (n − 1) × K. Overall length L = P + H + J + 18 + 18. P/J depend on resolution: 10 mm→5/32, 20 mm→10/25, 40 mm→20/25, 80 mm→40/25.
Technical Parameters (DQV Series)
Category
Item
Typical Value / Option
Notes
Optical
Operating principle
Through-beam infrared LED, modulated
Emitter/receiver pair; optical sync within controller system
Resolution (K)
10 / 20 / 40 / 80 mm
Finger / Palm / Hand-arm / Body
Protective height (H)
H = (n−1) × K
n = number of beams
Response time
≤ 10 ms
Varies with beam count
Ambient light immunity
≥ 10,000 Lux
Incidence ≥ 5°
Sensing range
0.3–3 m (standard); 0.3–6 m / 0.3–30 m (options)
Per selection table
Electrical / I/O
Supply
AC 110–220 V (controller) / DC via controller
Isolated DC-DC; ≤200 mA consumption (typ.)
Safety outputs
Dual relay / dual transistor via controller
AC250V/5A or DC30V/5A (typ. by controller)
Output status
Dual outputs, dual channels; NO/NC groups
Per controller type OC/2C/2O
Protection
Short / over-current / over-load
Auto recovery
Indicators
TX: Power (red); RX: Output ON (green) / Blocked (red)
Front LEDs
Connector
M12 / aviation cable
IP65 stainless threaded head

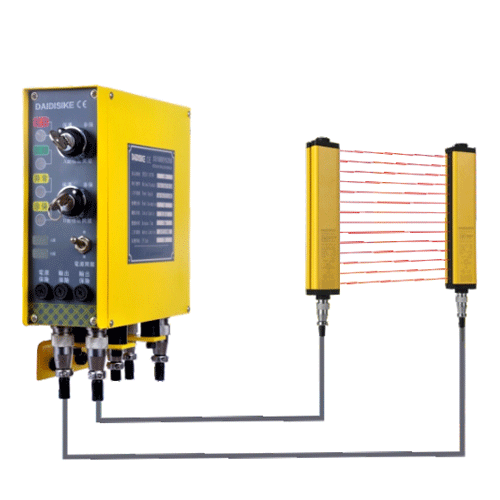

Controllers
W (external), N (inner), S (ext. panel), P (inner panel)
See model format
Mechanical / Environment
Body section
≈ 35 × 51 mm
Aluminum body; ABS reinforced end-caps
Overall length
L = P + H + J + 36 mm
P/J per K
Ingress protection
IP65
Dust-tight & water-jet resistant
Operating temp.
−10 ~ +40 °C
Storage −25 ~ +55 °C (no icing)
Humidity
Work 35–85 %RH; Storage 35–95 %RH
Non-condensing
Compliance
Standards
IEC 61496-1/-2; ISO 13855 for distance
High-level safety with safety relay/PLC
Certifications
CE etc.
Refer to delivered certificates
System integration
Safety relay / Safety PLC
Independent dual inputs
DQV Series Detailed Specifications
Model format: DQV-K-NN-H-[Controller], e.g. DQV-40-22-840-W (K=40, n=22, H=840, external controller). Protective height H = (n−1)×K; overall length L = P + H + J + 18 + 18.
K (mm)
Beams n
Protective Height H (mm)
P/J (mm)
Overall Length L (mm)
Controller (W/N/S/P)
Range
Model Example
10
12
110
5/32
183
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-12-110
10
14
130
5/32
203
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-14-130
10
16
150
5/32
223
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-16-150
10
18
170
5/32
243
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-18-170
10
20
190
5/32
263
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-20-190
10
22
210
5/32
283
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-22-210
10
24
230
5/32
303
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-24-230
10
26
250
5/32
323
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-26-250
10
28
270
5/32
343
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-28-270
10
30
290
5/32
363
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-30-290
10
32
310
5/32
383
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-32-310
10
34
330
5/32
403
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-34-330
10
36
350
5/32
423
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-36-350
10
38
370
5/32
443
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-38-370
10
40
390
5/32
463
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-40-390
10
42
410
5/32
483
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-42-410
10
44
430
5/32
503
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-44-430
10
46
450
5/32
523
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-46-450
10
48
470
5/32
543
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-48-470
10
50
490
5/32
563
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-50-490
10
52
510
5/32
583
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-52-510
10
54
530
5/32
603
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-54-530
10
56
550
5/32
623
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-56-550
10
58
570
5/32
643
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-58-570
10
60
590
5/32
663
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-60-590
10
62
610
5/32
683
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-62-610
10
64
630
5/32
703
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-64-630
10
66
650
5/32
723
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-66-650
10
68
670
5/32
743
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-68-670
10
70
690
5/32
763
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-70-690
10
72
710
5/32
783
W/N/S/P
0.3–3 m (0.3–30 m opt.)
DQV-10-72-710
Controller codes: W=External, N=Inner, S=External panel, P=Inner panel. Keep the model format DQV-K-NN-H and append controller if needed.
Typical Applications
Presses / shears / press brakes: 10–20 mm for hand protection with quick stop via relay/PLC.

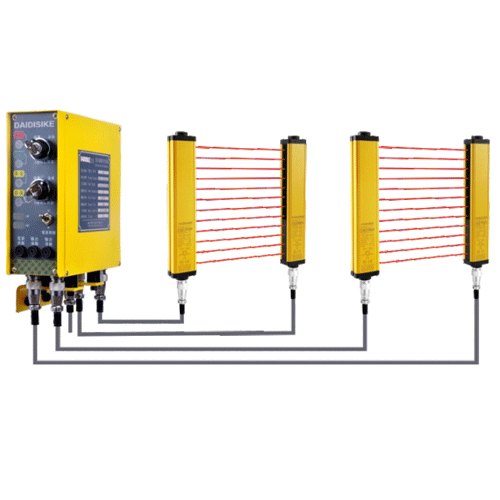

Large fixtures, conveyors & robot cells: 40–80 mm for presence/perimeter detection with interlocked doors.
General machinery: pair with safety relay/PLC for stop, restart interlock and EDM monitoring.
Safety distance reference (ISO 13855): S = K × T + C, where T is total machine stopping time.
Frequently Asked Questions
What resolution should I choose on the DQV for finger, hand or body protection?
Choose by the smallest body part that can reach the hazard. Use 10 mm for finger protection at close-in assembly, 20 mm for palm/hand protection at packaging and access openings, and 40 or 80 mm for hand-arm or body presence and perimeter zones. The DQV offers 10/20/40/80 mm, so one series covers presses, conveyors and aisle guarding.
Is the DQV a Type 4 safety light curtain and can it reach PL e?
The DQV is built to the IEC 61496-1/-2 architecture with dual-channel safe outputs and self-diagnosis. The Performance Level (up to PL e / Cat. 4 under ISO 13849-1) is achieved by the complete safety function — the curtain and controller plus a certified safety relay or safety PLC with EDM feedback validated by the integrator.
Can the DQV replace an Omron F3SG-SR, SICK deTec or Keyence safety light curtain?
In many cases yes. The DQV matches common 10/20/40 mm resolutions, 0.3–3 m standard range and dual-channel safe outputs through its controller, so it fits the same safety loop. Confirm protective height, resolution and controller output type (relay or transistor) against the unit being replaced; see our Keyence/SICK alternatives buyer's guide.
How do I wire the DQV safe outputs to a PLC or safety relay with EDM?
The DQV delivers its safe outputs through external or inner W/N/S/P controllers as dual relay or dual transistor channels. Route the two channels into a dual-channel safety relay or safety PLC input, and run the EDM/feedback loop through forcibly-guided contacts so a welded contact is caught on restart. See our OSSD NPN/PNP wiring with EDM guide.
How do I calculate the minimum safety distance for the DQV?
Apply ISO 13855: S = K × T + C, where K = 2000 mm/s (hand-speed constant), T is the total machine stop time plus the curtain response (≤10 ms), and C is the intrusion factor from the resolution. The faster ≤10 ms response lets you mount closer to the hazard. Our ISO 13855 calculator computes the exact distance.
What ingress protection and response time does the DQV have?
The DQV is rated IP65 (dust-tight, water-jet resistant) with a stainless threaded M12/aviation connector head, a typical response time of ≤10 ms, and ambient-light immunity of ≥10,000 Lux with anti-flicker filtering against weld arc and ambient light — suitable for most indoor stamping, automation and packaging environments.
