JHW Solar Wireless Infrared Anti-Tamper Detector for Perimeter Walls for Security Protection

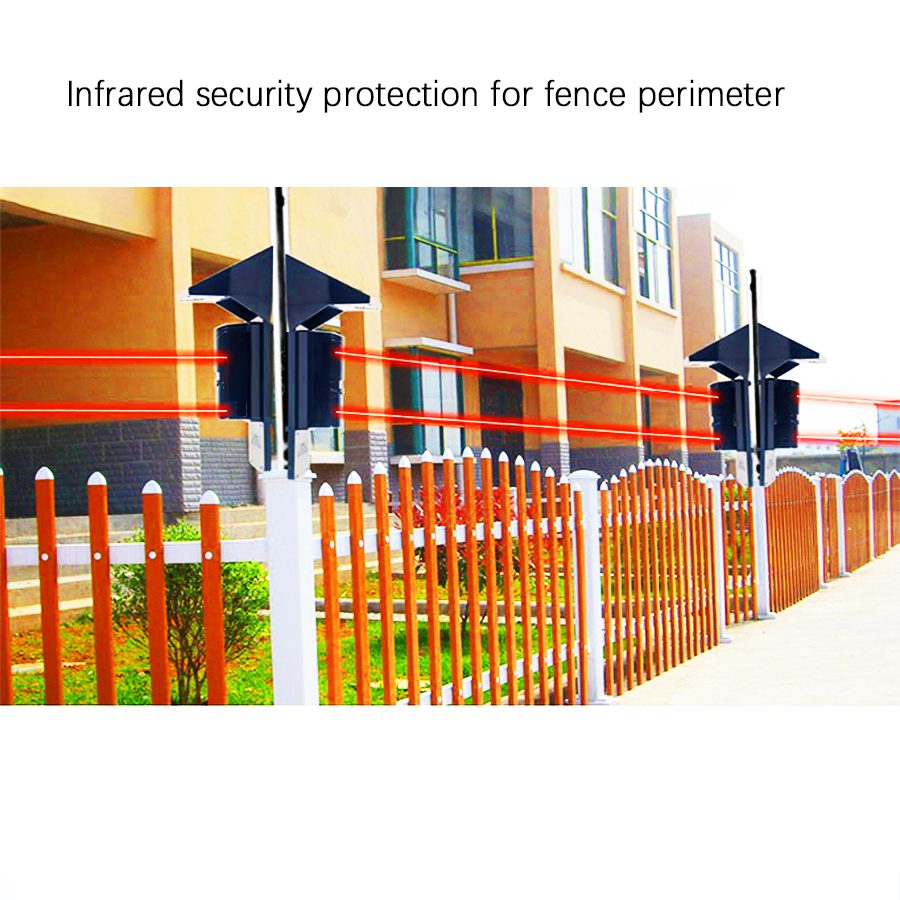

Where there is light, there is electricity — the JHW series is a solar-powered, wireless infrared beam detector designed for perimeter walls, orchards, fish ponds, construction sites and remote guard posts. No wiring, no coding, switch on and it works.
- Solar-powered through-beam detector — no AC wiring required.
- Energy-saving and environmentally friendly — 2 days of sunlight gives 30 days of operation.
- Wireless 315 / 433 MHz signal, optional LoRa for long-range remote sites.
- IP65 weatherproof housing for harsh outdoor environments.
Technical Parameters
| Parameter | JHW-100T2 | JHW-100T3 |
|---|---|---|
| Number of infrared beams | 2 beams | 3 beams |
| Outdoor warning distance | 60 – 100 m | 50 – 200 m |
| Detection & alarm mode | Infrared light-obstruction alarm (wireless 315 MHz, 1527 chip, 330 oscillating resistor) | |
| Light source | Digital-filter infrared light source | |
| Sensing speed | 35 – 700 m/sec | |
| Alarm output | Normally Open or Normally Closed (selectable) | |
| Working current | 200 mA / pair | |
| Working voltage | DC 12 – 18 V | |
| Working temperature | −20 °C to +55 °C | |
| Working humidity | ≤ 95 %RH, non-condensing | |
| Protection class | IP65 | |
| Wireless options | 315 / 433 MHz standard, LoRa optional | |
| Weight | 1.2 kg | |
Product Configuration

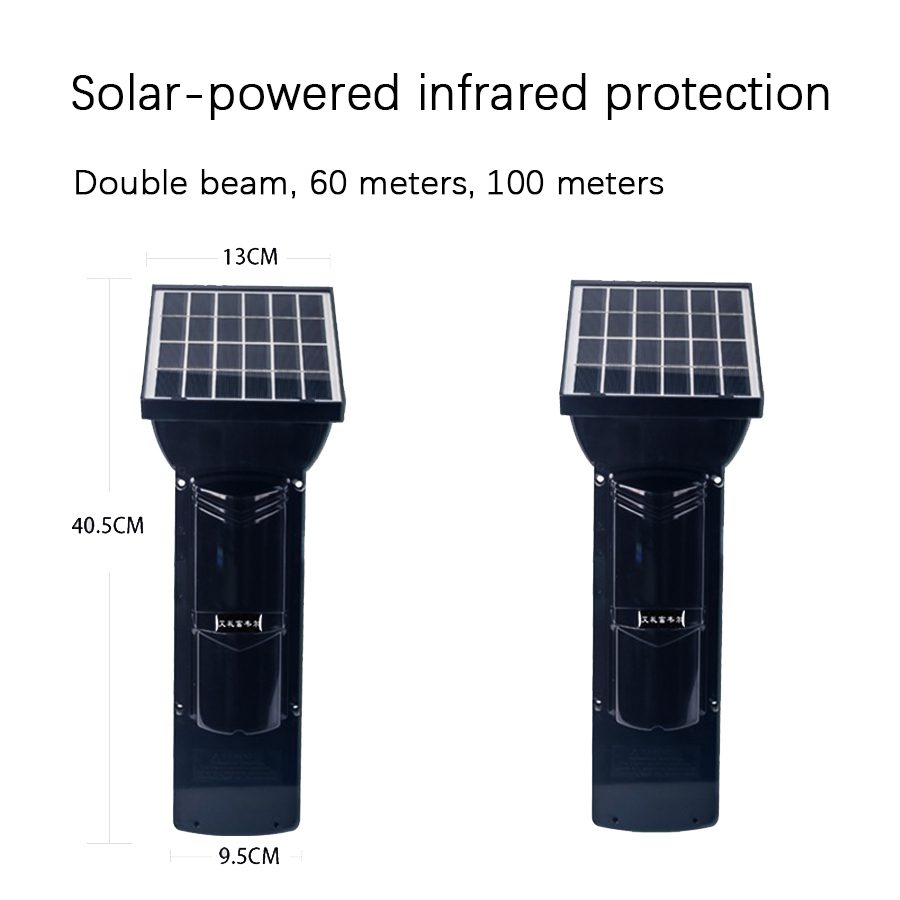

JHW-100T2 — 2-beam Solar Wireless Infrared Beam
- Outdoor warning distance
- 60 – 100 meters
- Model
- JHW-100T2-60/100
- Alarm mode
- Infrared shielding alarm (wireless 315 MHz, 1527 chip)
- Light source
- Digital filter light source
- Induction speed
- 35 – 700 m/sec
- Alarm output
- NO / NC optional
- Working current
- 200 mA / pair
- Working voltage
- DC 12 – 18 V
- Operating temp.
- −20 °C to +55 °C
- Weight
- 1.2 kg

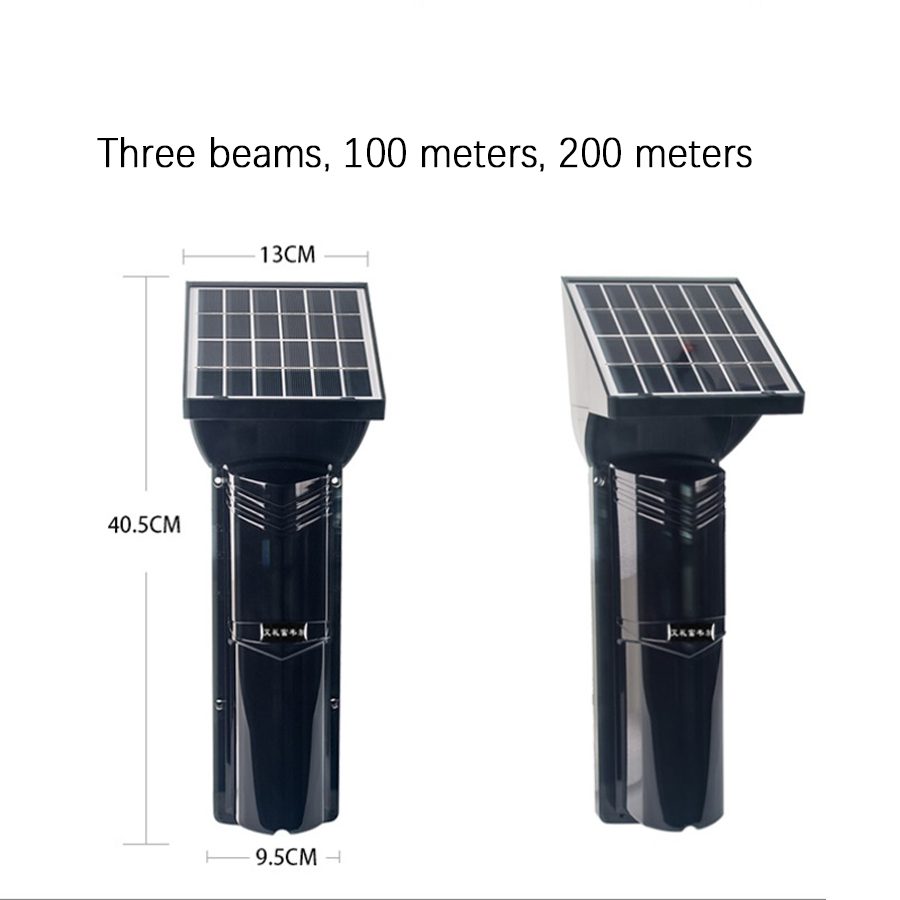

JHW-100T3 — 3-beam Solar Wireless Infrared Beam
- Outdoor warning distance
- 50 – 200 meters
- Model
- JHW-100T3-50/100/200
- Alarm mode
- Infrared shielding alarm (wireless 315 MHz, 1527 chip)
- Light source
- Digital filter light source
- Induction speed
- 35 – 700 m/sec
- Alarm output
- NO / NC optional
- Working current
- 200 mA / pair
- Working voltage
- DC 12 – 18 V
- Operating temp.
- −20 °C to +55 °C
- Weight
- 1.2 kg
Frequency-conversion solar wireless targeting with four adjustable frequencies, suitable for more applications of C-type relay. Solar power supply and micro-power-consumption energy-saving design save electricity effectively. Highly sealed waterproof IP65, digital filtering and environmental adaptive function bring false positives and beam interference to the lowest level, making the unit suitable for a wide range of complex environments. High-capacity storage battery, monocrystalline solar panel and high-power wireless transmission frequency (433 / 315 MHz selectable) are standard; LoRa module is optional for complex long-range environments.
Product Characteristics
The solar beam adopts environmentally-friendly solar power supply, digital frequency-conversion technology and long-distance wireless transmission technology. It eliminates complex wiring and coding, and can be used immediately upon startup. Features include high cost-performance ratio, environmental friendliness, long service life, and easy installation and maintenance — it can satisfy power and alarm requirements without wiring. Typical sites include unmanned orchards, fish ponds, construction sites, border guard posts, guard booths, communication machine rooms and similar prevention-and-control areas.
- Frequency-conversion function, four adjustable frequencies, stable and anti-interference.
- One-key quick lock — easy installation, time- and labor-saving.
- Solar power supply and low-power consumption energy-saving design — effectively saves electricity.
- Highly sealed and waterproof: IP65.
- Digital filtering and environmental adaptive function — false-alarm rate reduced to the minimum.
- Beam interference minimized — suitable for various complex environments.
- Built-in high-capacity storage battery — maintenance-free, long-lasting battery life.
- Monocrystalline solar panels with built-in high-power wireless module (433 / 315 MHz selectable). For complex long-distance environments, LoRa modules can be optionally equipped.
Working Principle

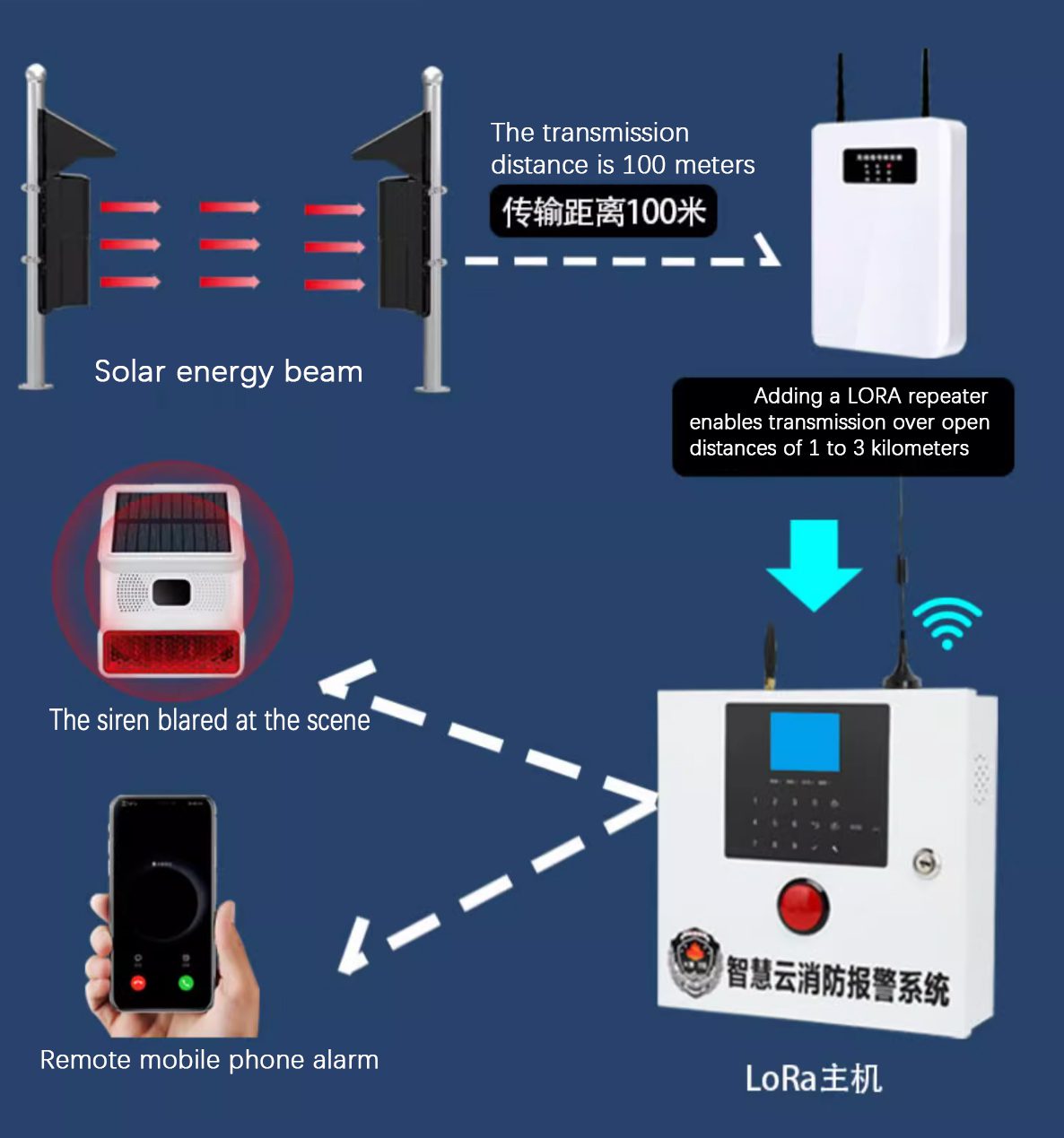

The JHW is a through-beam infrared detector. The transmitter emits 2 or 3 digital-filter infrared beams (frequency-conversion light source) that travel in a straight line to the receiver. Under unobstructed conditions the receiver continuously captures every beam and holds a normal state. When an intruder or object crosses the perimeter and blocks the infrared beams together, the receiver loses the signal and triggers the alarm, sending it wirelessly at 315 / 433 MHz to the host.
The JHW is an active intrusion detector consisting of two solar-powered parts: an infrared transmitter(monocrystalline solar panel, built-in storage battery, frequency-conversion modulation circuit, digital-filter infrared emission module, beam-angle adjustment device, weatherproof IP65 shell) and an infrared receiver (solar panel and battery, photosensitive receiver, photoelectric signal processor, wireless 315 / 433 MHz transmission module and weatherproof IP65 cover). The multi-beam layout, digital filtering and four adjustable frequencies keep the false-alarm rate to a minimum outdoors.
Product Introduction
The JHW solar beam adopts environmentally-friendly solar power supply, digital frequency-conversion technology and long-distance wireless transmission technology. It eliminates complex wiring and coding and can be used immediately upon startup. Typical applications include unmanned orchards, fish ponds, construction sites, border guard posts, guard booths, communication machine rooms and other prevention-and-control sites where running cable is impractical.
Frequently Asked Questions
How far can the JHW solar wireless infrared beam detect?

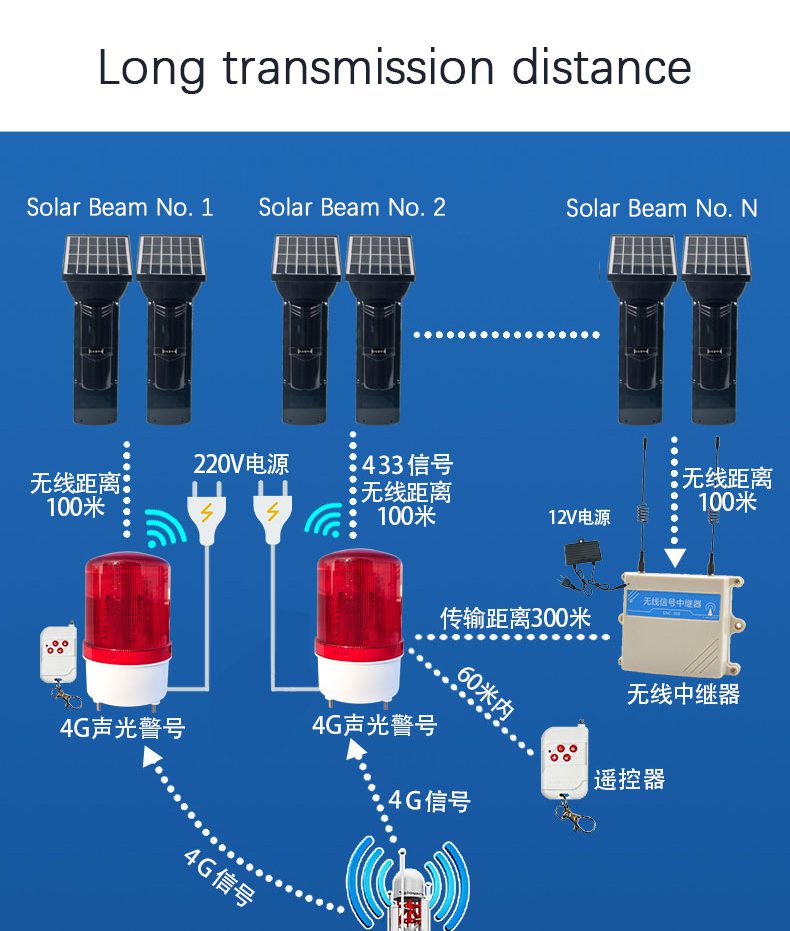

The 2-beam JHW-100T2 covers an outdoor warning distance of 60–100 m, while the 3-beam JHW-100T3 reaches 50–200 m. Adding more beams improves rejection of small animals and wind-blown debris over long perimeter runs. For very remote or extended sites, an optional LoRa module extends the wireless link well beyond standard 315/433 MHz range.
Does the JHW detector really need no wiring or external power?
Correct. The JHW is fully solar-powered with a monocrystalline panel and built-in high-capacity battery, so no AC wiring is required. Just 2 days of sunlight provides around 30 days of operation, and the low-power energy-saving design keeps it running through cloudy spells. Alarm signals are sent wirelessly at 315/433 MHz, eliminating both power and signal cabling.
How does it avoid false alarms outdoors?
It uses a digital-filter infrared light source with frequency-conversion technology and four adjustable frequencies to reject interference from sunlight, rain and neighbouring beams. The environmental adaptive function reduces the false-alarm rate to a minimum, and the multi-beam (2 or 3) layout means a target must break all beams together before the NO/NC alarm output triggers.
Is the JHW suitable for harsh outdoor and unmanned sites?
Yes. The housing is rated IP65 weatherproof and the unit operates from −20 °C to +55 °C at up to 95 %RH non-condensing. Because it needs no cabling, it is ideal for unmanned orchards, fish ponds, construction sites, border guard posts and communication machine rooms where running mains cable is impractical or costly.
What is the difference between the 2-beam and 3-beam models?
The JHW-100T2 has two infrared beams and a 60–100 m range; the JHW-100T3 has three beams and a 50–200 m range. More beams increase detection reliability and help reject small intrusions, making the 3-beam version better for longer or higher-security perimeter walls. Both share the same 200 mA/pair current, DC 12–18 V supply, IP65 rating and wireless 315/433 MHz alarm.
Specs reviewed by Engineer Cai, Senior Application Engineer. See certificates.
